1、Product Overview

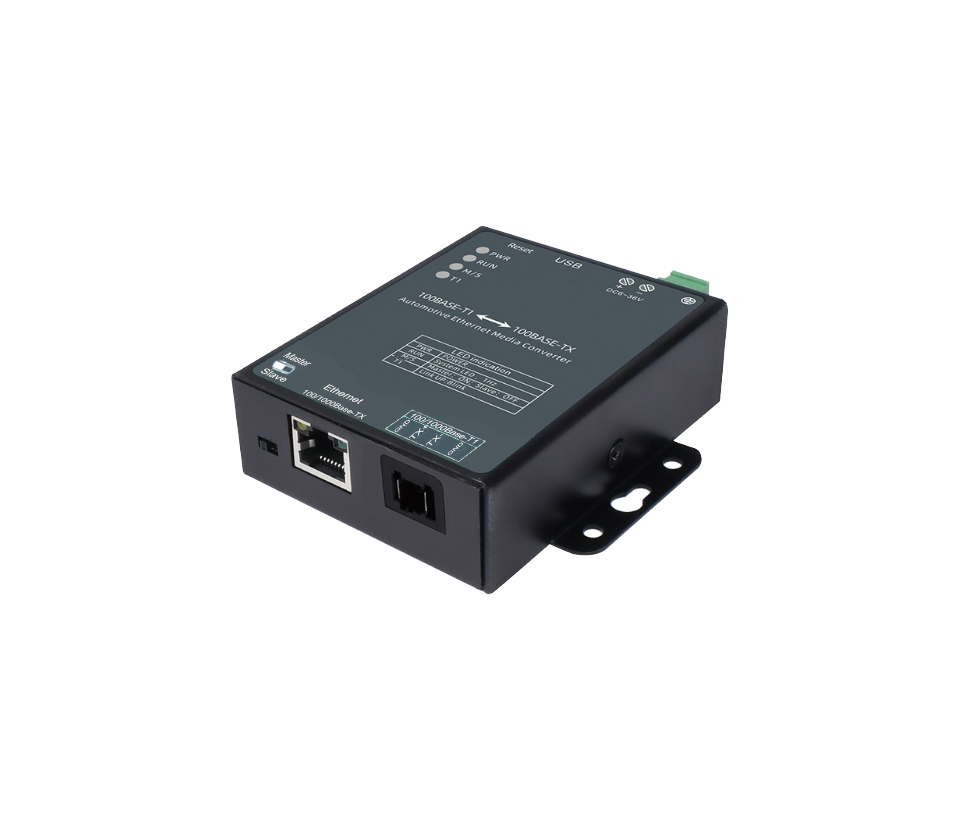

XQ1002-Z is a protocol adapter for Gigabit Ethernet (100BASE-T1) and regular Ethernet (100BASE-TX) launched by Shenzhen Xallcom Technology Co., Ltd. This device achieves bidirectional transparent conversion between physical layer point-to-point of ordinary Ethernet and vehicle Ethernet, without storing or modifying any Ethernet data packets. The product is compact and elegant, meeting the technical requirements of automotive standards, and has been widely used in internal communication of automobiles, electric car battery swapping stations, and industrial communication scenarios with limited space.
2、Product Features
Ø Automotive-grade design.
Ø DC9~36V wide voltage power supply design, supporting 12V/24V power systems.
Ø Supports USB power supply via Type-C interface.
Ø One automotive Ethernet interface, TEMatenet 100BASE-T1.
Ø One standard Ethernet 100BASE-TX interface with RJ45 connector.
Ø Supports 100Mbps communication; adaptive speed negotiation without the need for configuration.
Ø The automotive Ethernet side can be set as either Master or Slave. The setting takes effect immediately without needing to restart the device.
Ø Built-in 100BASE-T1 filter compliant with OPEN Alliance standards.
Ø Rich status indicators for easy troubleshooting.
3、Product Specification
|
Model |
XQ1002-Z |
|
Ports |
1*100BASE-TX RJ45 port， 1*100BASE-T1 Terminal block |
|
EMC |
IEC 61000-4-5 Surge : Power: ± 1 kV ; Signal: ± 1 kV IEC 61000-4-2 ESD: Contact : ± 6KV ; Air : ± 8KV IEC 61000-4-4 EFT Power: ± 1kV ; signal : ± 1 kV |
|
DIP Switch |
Present, can switch between master and slave mode |
|
Operating Environment |
Operating temp.: -40~+85°C Storage temp.: -40~+85°C Humidity: 10%~80% (non-condensing) |
|
Power Supply |
DC9~36V, reverse polarity protection, supports powering by USB Type C Over Current Protection |
|
Power Consumption |
2W |
|
Installation Method |
Wall mounting |
|
Dimensions(L*W*H) |
88 * 68 * 27 mm |
4、Hardware Interface
|
Number |
Interface |
Explanation |
|
1 |
USB Type-C connector |
Can powering the device by USB |
|
2 |
Terminal block of power supply |
DC9~36V, reverse polarity protection, 5.08mm spacing, with screws for tightening, not afraid of shock |
|
3 |
Grounding screw |
Can be connected to the user's grounding |
|
4 |
Automotive Ethernet port (100/1000BASE-T1) |
Automotive Ethernet differential signal interface, connected to another automotive Ethernet PHY via twisted pair cable |
|
5 |
General standard Ethernet RJ45 |
RJ45 Ethernet port with two LEDs |
|
6 |
DIP switch |
Master mode: set the DIP switch to the Master position Slave mode: set the DIP switch to the Slave position |
5、Mechanical Diagram
Size：88 * 68 * 27 mm
6、Order Information
|
Model |
Description |
|
XQ1002T |
1*100M RJ45 copper port 1*Automotive T1 Ethernet TEMatenet connector (2304372-1) Operating temp.: -40~+85°C Power supply: DC9~36V, or directly powered by USB-Type C Installation: Wall-mounting Size: 88 * 68 * 27 mm |
|
XQ1002H |
1*100M RJ45 copper port 1*Automotive T1 Ethernet 5.08mm pitch OPEN Phoenix Terminal with fixing screws Operating temp.: -40~+85°C Power supply: DC9~36V, or directly powered by USB-Type C Installation: Wall-mounting Size: 88 * 68 * 27 mm |
|
XQ1002T-M12 |
1*100M M12 A-Coded female port 1*Automotive T1 Ethernet TEMatenet connector (2304372-1) Operating temp.: -40~+85°C Power supply: DC9~36V, or directly powered by USB-Type C Installation: Wall-mounting Size: 88 * 68 * 27 mm |
|
XQ1002M |
1*100M RJ45 copper port 1*Automotive T1 Ethernet Molex connector (347910040) Operating temp.: -40~+85°C Power supply: DC9~36V, or directly powered by USB-Type C Installation: Wall-mounting Size: 88 * 68 * 27 mm |
|
XQ1002L |
1*100M RJ45 copper port 1*Automotive T1 Ethernet Rosenberger H-MTD connector (E6S20A-40MT5) Operating temp.: -40~+85°C Power supply: DC9~36V, or directly powered by USB-Type C Installation: Wall-mounting Size: 88 * 68 * 27 mm |
|
XQ1002L-M12 |
1*100M M12 A-Coded female copper port 1*Automotive T1 Ethernet Rosenberger H-MTD connector (E6S20A-40MT5) Operating temp.: -40~+85°C Power supply: DC9~36V, or directly powered by USB-Type C Installation: Wall-mounting Size: 88 * 68 * 27 mm |
|
XQ1002E |
1*100M M12 copper port 1*Automotive ECT Connector Operating temp.: -40~+85°C Power supply: DC9~36V, or directly powered by USB-Type C Installation: Wall-mounting Size: 88 * 68 * 27 mm |
