Product Overview
The XQ1001U-T1 is a Hi-Speed USB 2.0 to 10/100 Ethernet controller, to interconnect a USB interface with a 10/100BASE-T1 Ethernet network interface. Thus, the adapter serves as a network card that connects applications via USB to the 10/100BASE-T1 network interface. The XQ1001U-T1 functions as seamless media converter between a standard USB 2.0 interface and a 100BASE-T1 automotive Single Pair Ethernet network. On Linux host PCs the XQ1001U-T1 is detected as standard Ethernet device.

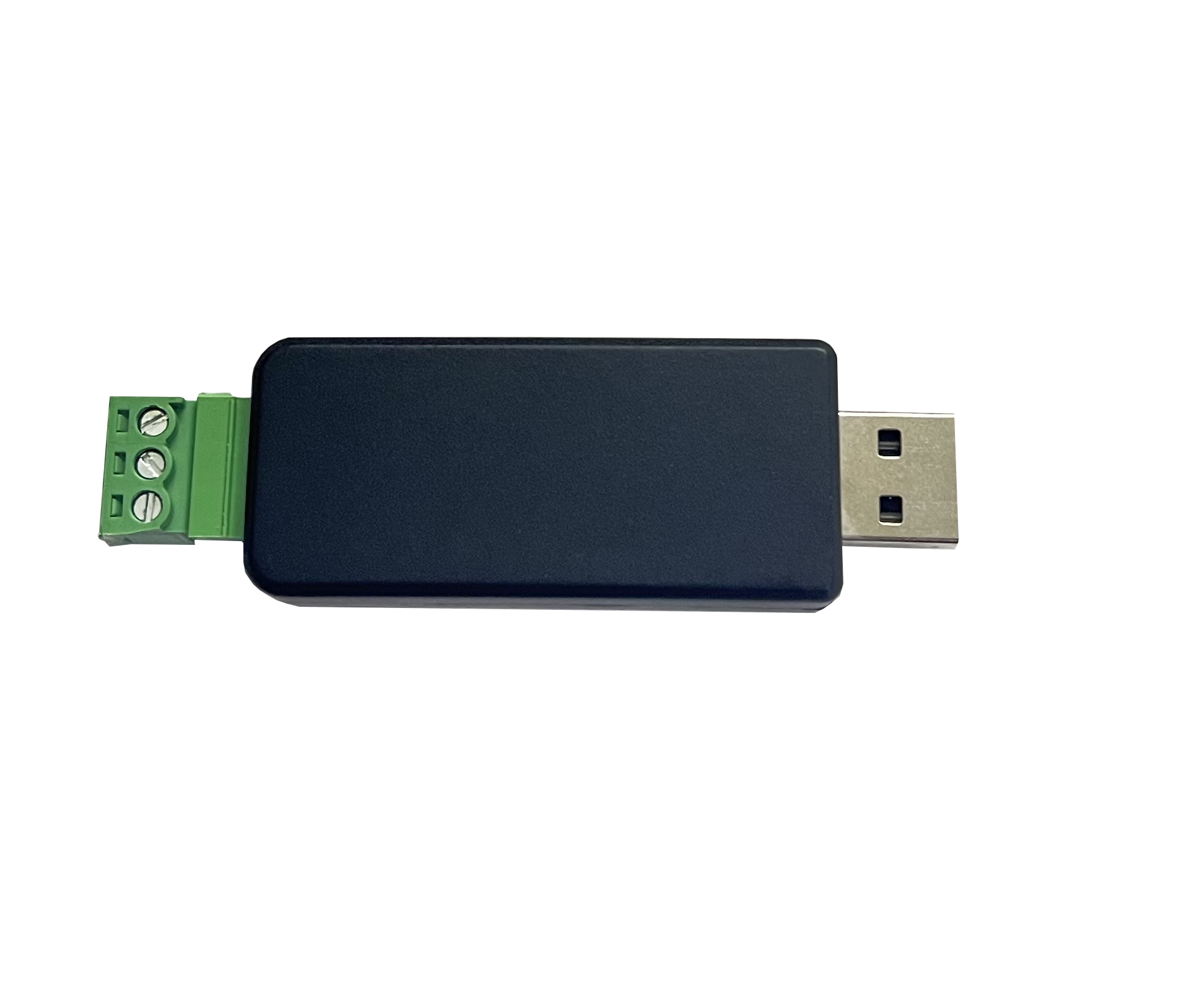

XQ1001U-T1: 100BASE-T1 to USB Converter
Size: 64.8 x 17 x 11 mm
Product Features
USB to 100BASE-T1 interface card, Linux compatible;
High-Speed USB 2.0 device interface with Type-A connector ;
Configurable on-board termination ;
Screw terminal for direct cable connection (no connector needed);
Can work in the temperature range -25°C ~ +60°C.
Applications
The USB interface of XQ1001U-T1 allows seamless connection to various PCs, laptops, and embedded platforms. USB control allows the use of USB hosts running Linux operating systems. This makes XQ1001U-T1 suitable for the following applications:
Supports 100BASE-T1 physical interface standard Ethernet devices;
Linux PC used as a protocol analyzer for 100BASE-T1 network (Wireshark);
Use two XQ1001U-T1 for point-to-point automotive Ethernet connection;
Evaluation of NXP TJA10101 100BASE-T1 PHY Chip's Full Access to SMI Register;
100BASE-T1 Cable Testing and Network Diagnosis;
Multi node simulation in the design of automotive Ethernet switches;
Simulation and Demonstration of Automotive Ethernet Network.
ELECTRICAL CHARACTERISTICS
|
Parameter |
Min. |
Typ. |
Max. |
Unit |
|
USB Connector Voltage |
4.75 |
5 |
5.25 |
VDC |
CONNECTORS
All connectors are mounted on the top side of the board.
USB Connector：
The X6011u_T1 provides a USB connector to connect to a USB device.
Type: 0480370001, standard type A, from Molex®
Network Connector;
The network connector is used as the interface to the network.
PIN DESCRIPTION
|
Pin |
Description |
|
Terminal 1 |
TRX_P |
|
Terminal 2 |
TRX_N |
|
Terminal 3 |
PE |
LED
All LEDs are installed on the top of the board.
The following table provides an overview of LED and its signal status.
|
Name |
State |
Description |
|
Master Mode (Blue LED) |
Slow flashing |
No Link Master |
|
Fast flashing |
Link up Master |
|
|
Slave Mode (Green LED) |
Slow flashing |
No Link Slave |
|
Fast flashing |
Link up Slave |
Mechanical Diagram
Size: 64.8 x 17 x 11 mm
Ordering Information
|
Model |
Description |
Working Temperature |
|
XQ1001U-T1 |
100BASE-T1 to USB Converter Media converter between a standard USB 2.0 interface and a 100BASE-T1 automotive Single Pair Ethernet network. On Linux host PCs the XQ1001U-T1 is detected as standard Ethernet device.Size: 64.8 x 17 x 11mm |
-25～+60˚C |
Manufacturer Information
Company:Shenzhen Xallcom Technology Co., Ltd.
Address:3/F, No.220-1 of Niucheng Road, Xili Street, Nanshan District, Shenzhen, China
Website:www.xallcom.com
Tel.:+86 755-8605 9338 Fax:+86 755-8605 9328
